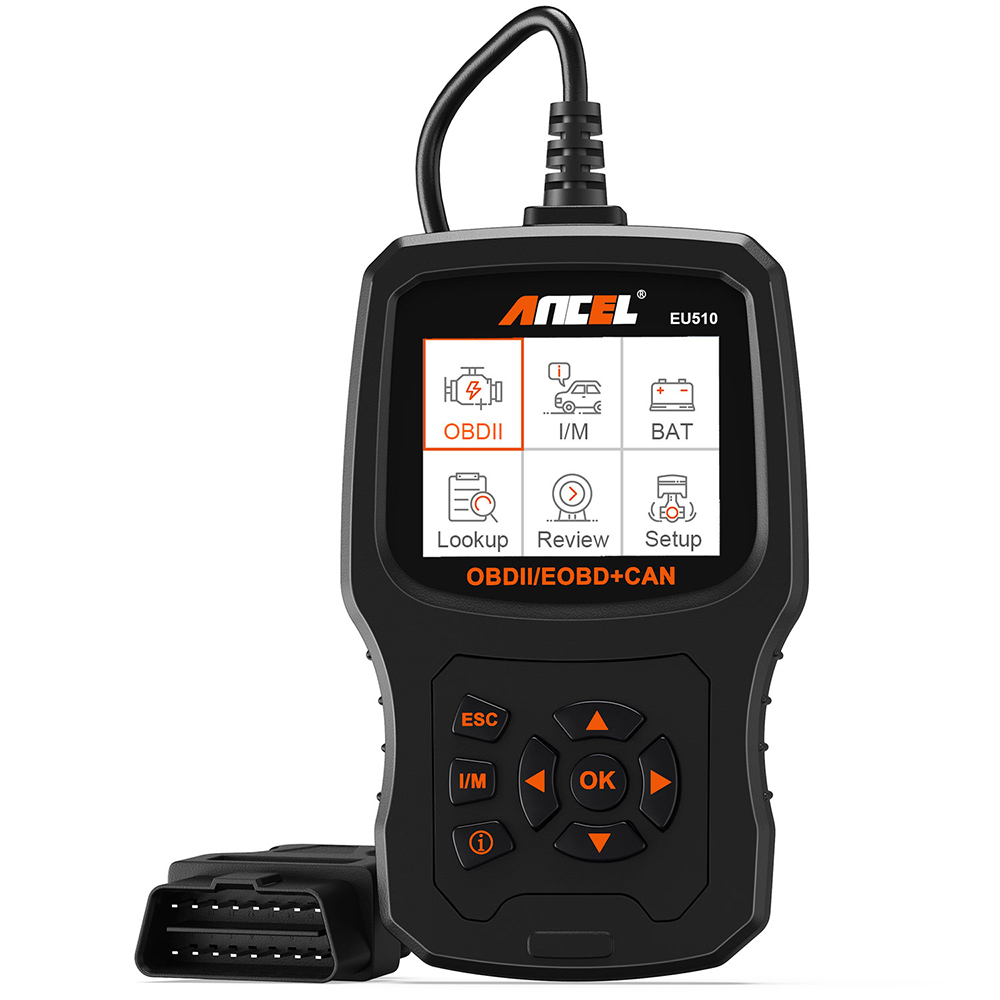

Ancel EU510 Engine Code Reader
Ancel EU510 OBD2 Scanner For Citroen Peugeot Renault 15 Language Engine Code Reader OBD ODB2 Automotive Car Diagnostic Tool
Ancel EU510 Engine Code Reader
NEW UPGRADE --- New add OBDII protocols for European Cars, including ISO9141, KWP2000, J1850 PWM, J1850 VPW and CAN protocols. Cover most of models after 2002 for Citroen, for Peugeot, for Opel, for VAG.
NEW FUNCTION --- New battery function, it allows you to monitor your battery status with graph data forms. Instead of a number result on the screen, you can actually read the accurate live data and determine whether the battery is good or bad.
MUST HAVE --- Classic design, fast scan and clear trouble codes, even a beginner can use this unit to read the error code, find out what the problem is and perhaps fix it. Save money and time.
BASIC FUNCTIONS --- Easily determines the cause of the check engine light. I/M monitor readiness test, turn off the MIL (check engine light) as well as view freeze frame data. Read hard (memory) / pending (intermittent) and historic codes and show definitions.

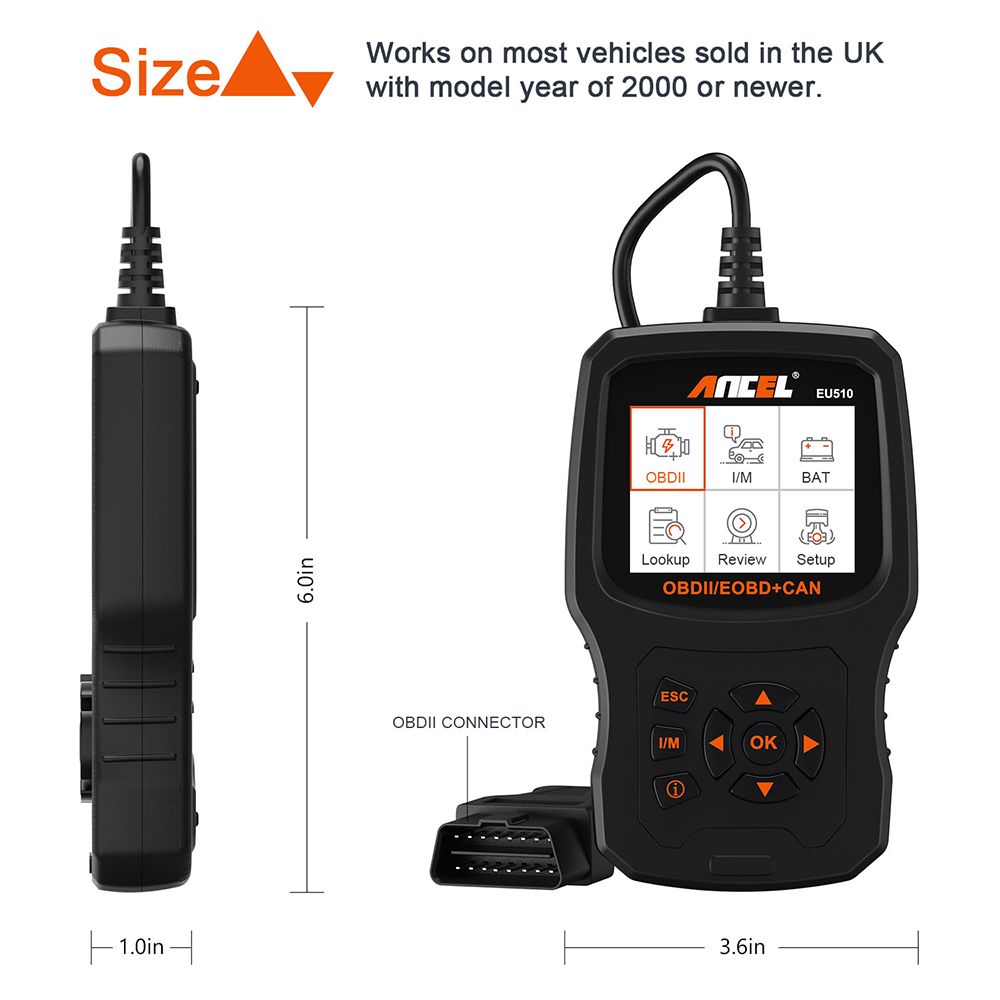

EASY TO OPERATE --- The EU510 scanner is well built with a large LCD display (128 x 64 pixel) that has white backlight and contrast adjustment, indicates test results directly. No need any Batteries or Charger, gets the power directly from the OBDII Data Link Connector in your vehicle
BASIC FUNCTIONS --- Easily determines the cause of the check engine light. I/M monitor readiness test, turn off the MIL (check engine light) as well as view freeze frame data. Read hard (memory) / pending (intermittent) and historic codes and show definitions.
EASY TO OPERATE --- The EU510 scanner is well built with a large LCD display (128 x 64 pixel) that has white backlight and contrast adjustment, indicates test results directly. No need any Batteries or Charger, gets the power directly from the OBDII Data Link Connector in your vehicle

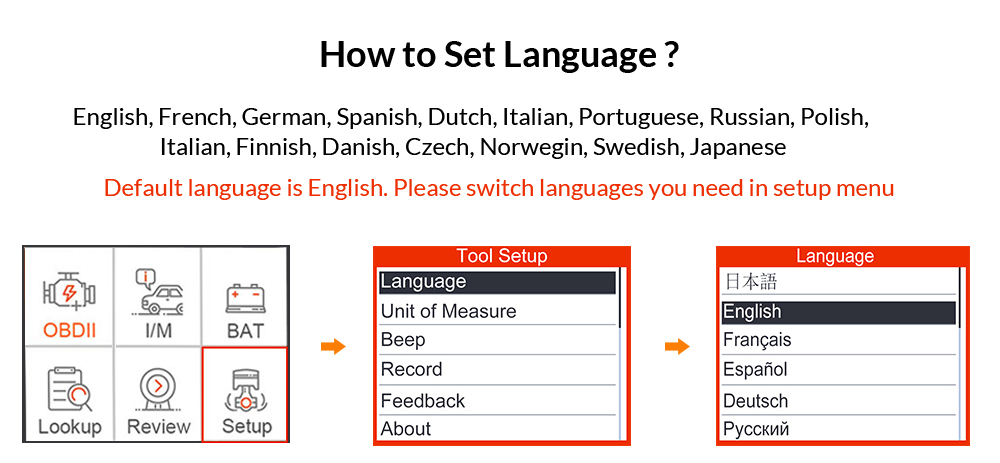

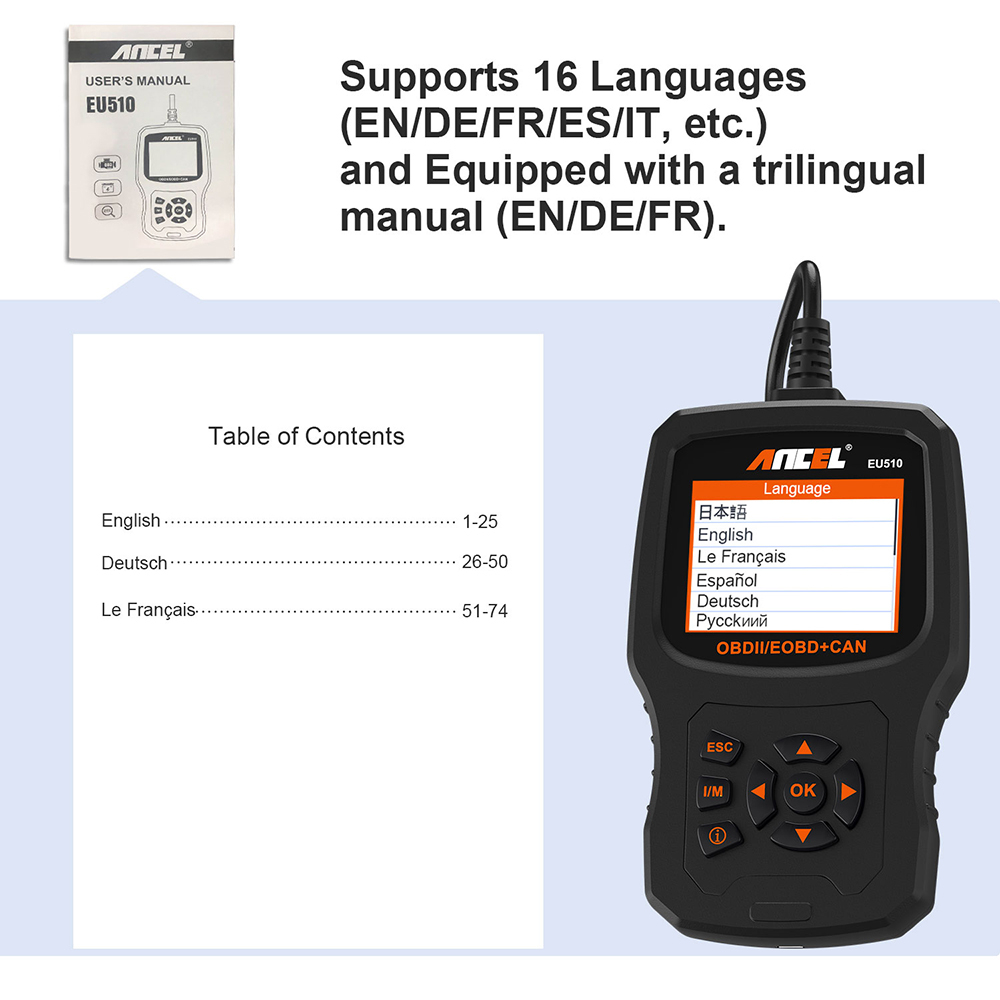

Support 15 Kinds of Different language
English, French, German, Spanish, Dutch, Italian, Portuguese, Russian, Polish,
Italian, Finnish, Danish, Czech, Norwegin, Swedish, Japanese
Default language is English. Please switch languages you need in setup menu

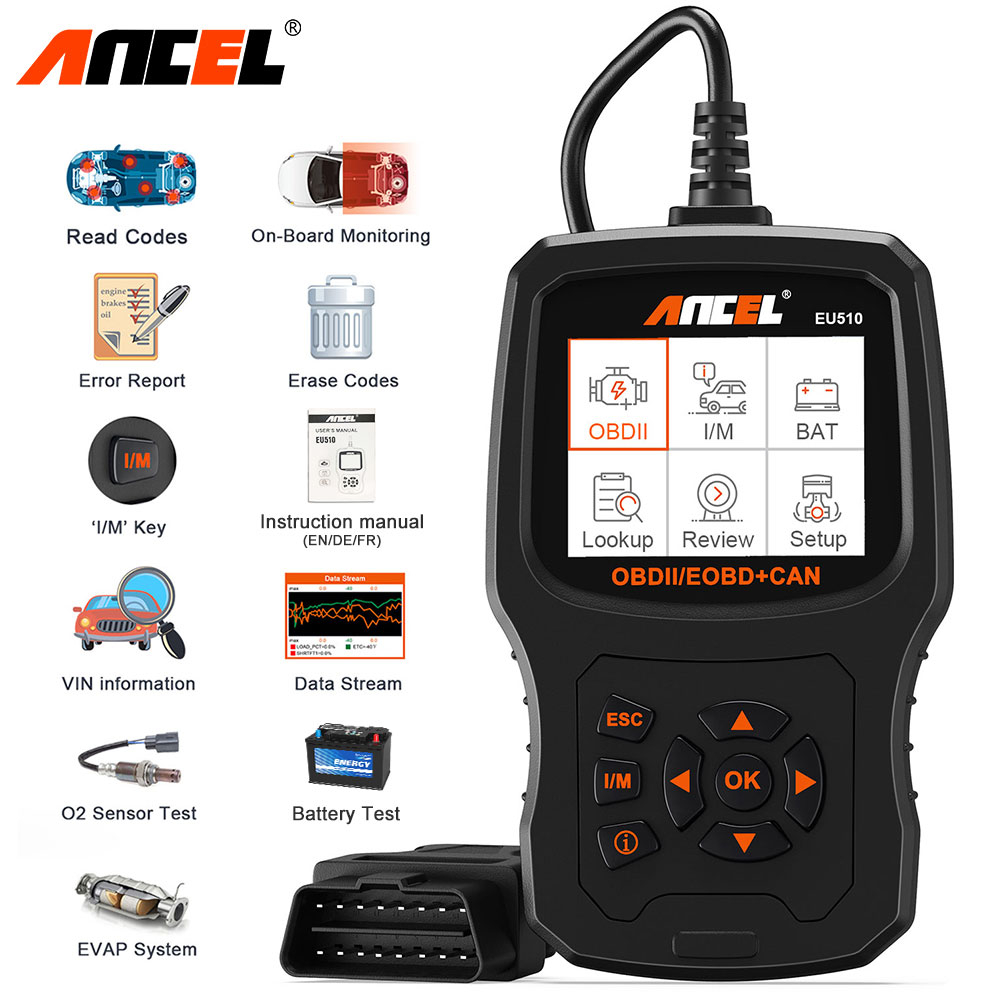

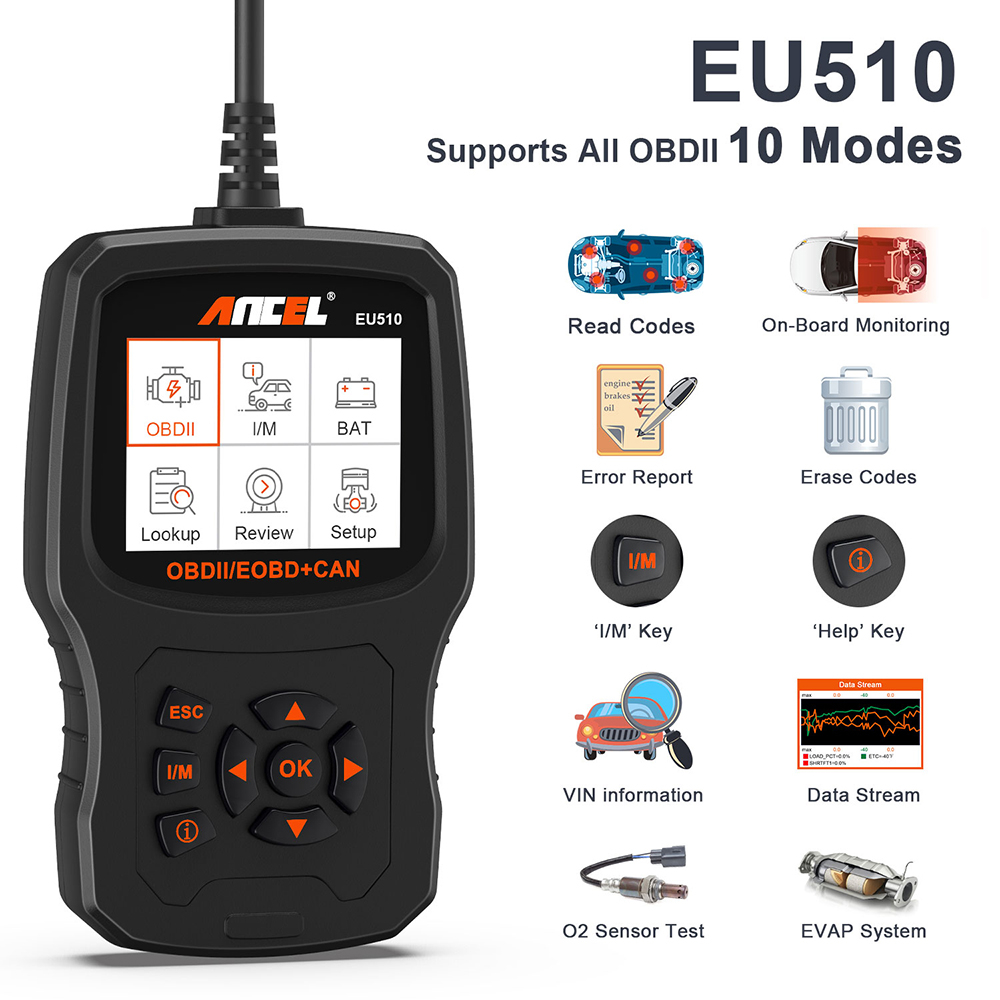

Powerful Function Engine Check Including
*Read, Clear engine error codes. Turn off lsquoEngine Checkrsquo MIL.

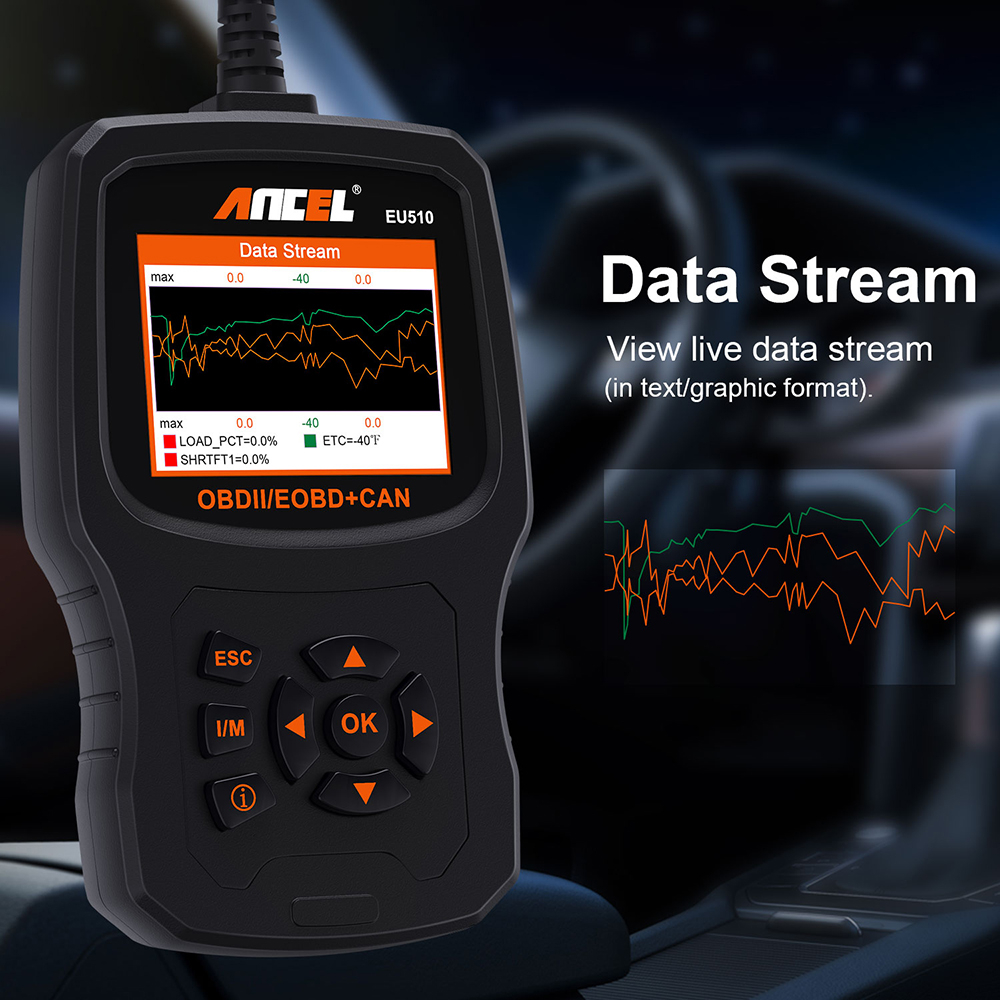

*Live Data --- It retrieves and displays live data and parameters from the vehiclersquos ECU, and enables observing which parameter is wrong intuitively via graphs.
*Live Data --- It retrieves and displays live data and parameters from the vehiclersquos ECU, and enables observing which parameter is wrong intuitively via graphs.
*Freeze Frame --- When emission-related faults occurs, certain vehicle conditions are recorded, so it can better locate the abnormal position and find the cause of the abnormality when it is repaired.
*EVAP Test --- This test initiates a leak test for the vehiclersquos evap system. It can store the fuel vapor produced by the fuel system and prevent the fuel vapor from leaking into the atmosphere.
*O2 Sensor Check --- It measures excess o2 in the exhaust after engine combustion, and control the increase or decrease of the fuel injection quantity to ensure the maximum conversion rate of pollutants.
*I/M Readiness --- It indicates whether or not the various emissions-related systems on the vehicle are operating properly and are ready for Inspection and Maintenance testing.
*O2 Sensor Check --- It measures excess o2 in the exhaust after engine combustion, and control the increase or decrease of the fuel injection quantity to ensure the maximum conversion rate of pollutants.
*I/M Readiness --- It indicates whether or not the various emissions-related systems on the vehicle are operating properly and are ready for Inspection and Maintenance testing.
*On-Board Monitor --- This function can be utilized to read the results of on-board diagnostic monitoring tests for specific components/systems, to ensure whether the systems are working as arranged.
*VIN Code Reading --- It can reading the VIN code from the car ECU (some cars ECU not support this functions)
*VIN Code Reading --- It can reading the VIN code from the car ECU (some cars ECU not support this functions)

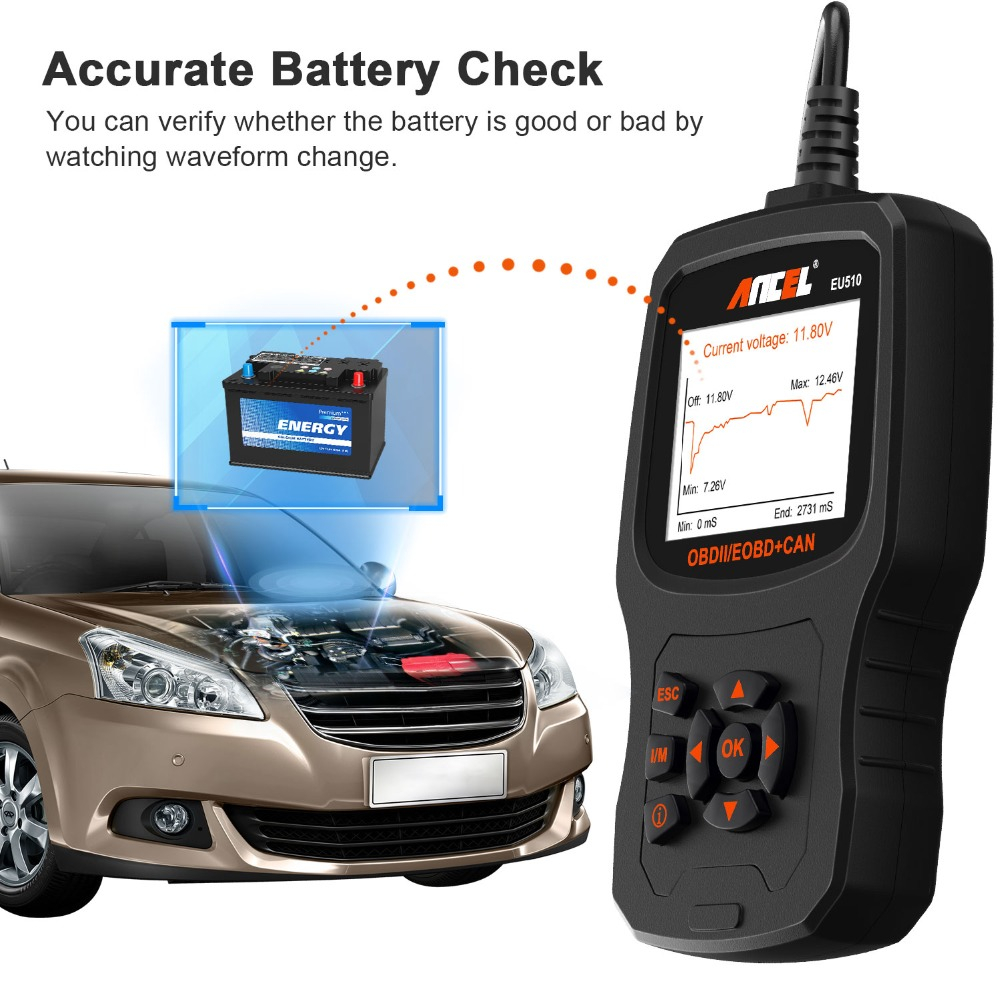

*Battery Monitoring --- M onitor your battery status with graph data forms. Instead of a number result on the screen, you can actually read the accurate live data and determine whether the battery is good or bad.
*Hard(memory) Codes Reading
*Hard(memory) Codes Reading
*Pending Codes Reading

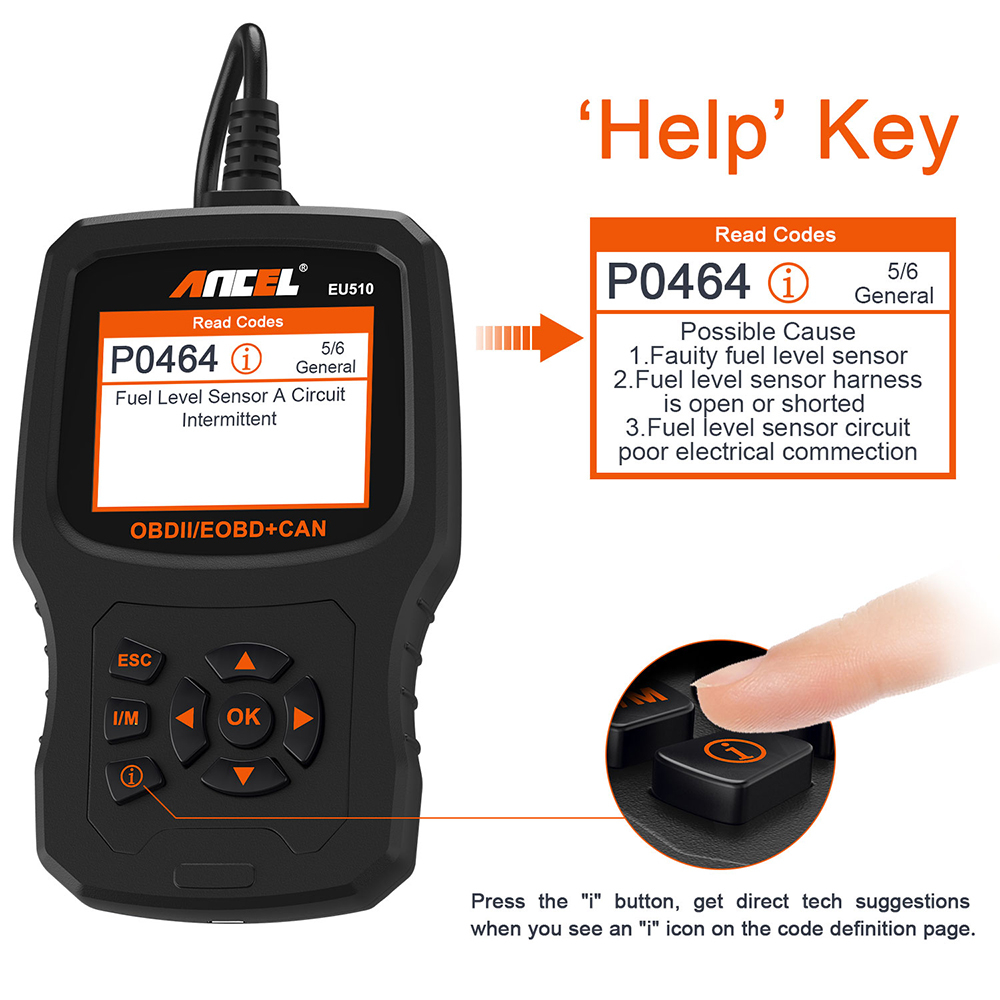

*Shows Codes Definitions
Support OBDII Protocols
KWP2000
ISO 9141-2 (5 baud init, 10.4 Kbaud)
ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
ISO14230-4 KWP (fast init, 10.4 Kbaud)
ISO15765-4 CAN (11bit ID, 500 Kbaud)
ISO15765-4 CAN (29bit ID, 500 Kbaud)
ISO15765-4 CAN (11bit ID, 250 Kbaud)
ISO15765-4 CAN (29bit ID, 250 Kbaud)
SAE J1850 PWM(41.6Kbaud)
SAE J1850 VPW(10.4Kbaud)
ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
ISO14230-4 KWP (fast init, 10.4 Kbaud)
ISO15765-4 CAN (11bit ID, 500 Kbaud)
ISO15765-4 CAN (29bit ID, 500 Kbaud)
ISO15765-4 CAN (11bit ID, 250 Kbaud)
ISO15765-4 CAN (29bit ID, 250 Kbaud)
SAE J1850 PWM(41.6Kbaud)
SAE J1850 VPW(10.4Kbaud)
OBD2 Scanner Supported Car List (Very Important)
EU510 Support 12V Diesel , Gasoline Car, Do NOT Support Hybrid, Electrical Car
American (USA) car
Compatible with Standard OBD2 Cars after 2001:
for Chrysler, for Ford, for GM, for Jeep
European car
Compatible with Standard OBD2 Cars after 2004:
for Alfa Romeo, for SAAB, for Acura, for Opel, for Audi, for Seat, for Bentley, for Skoda, for Daewoo, for Benz, for Daihatsu, for Land Rover, for BMW, for Vauxhall, for Volvo, for Fiat, for VW, for Ford, for Jaguar
for Skoda Superb after 2006
France Car
for Citroen, for Peugeot after 2002,
for Renault,for Volkswagen, Opel after 2002
Asian (Japanese/Korean) car
Compatible with Standard OBD2 Cars after 2005:
(if your car is in 2004 2005 2006 release , please ask us first)
for KIA, for Isuzu, for Honda , for Mitsubishi, for Hyundai, for Dacia, for Lexus , for Mazda, for Subaru, for Toyota
for Nissan after 2008
for Suzuki after 2012
Not support for Ssangyong
Chinese car:
Compatible with Standard OBD2 Cars after 2008:
for BYD, for Chery, for Geely, for Great Wall, for Karry
Note:
Even though it compatible with most cars, but different regions support the vehicle OBD2 protocol at different times, or some car is special design, so it may not compatible with some cars which do not support OBD2 protocol. Especially Japanese and Korean car brand.
Please Leave us message in below format, we will reply you within 8 hours.
for example : xx, 2005, 2.0cc, Diesel
Warning:
Not Support Russian Cars, VAZ,UAZ,LADA
Not works with Trucks, Pickups, Vans
Package List
1* Ancel EU510
1* User Manual
1* Ancel EU510
1* User Manual
Noticed: there is a protection film on the screen, please tear it before use
Noticed
Working system: Engine Only
