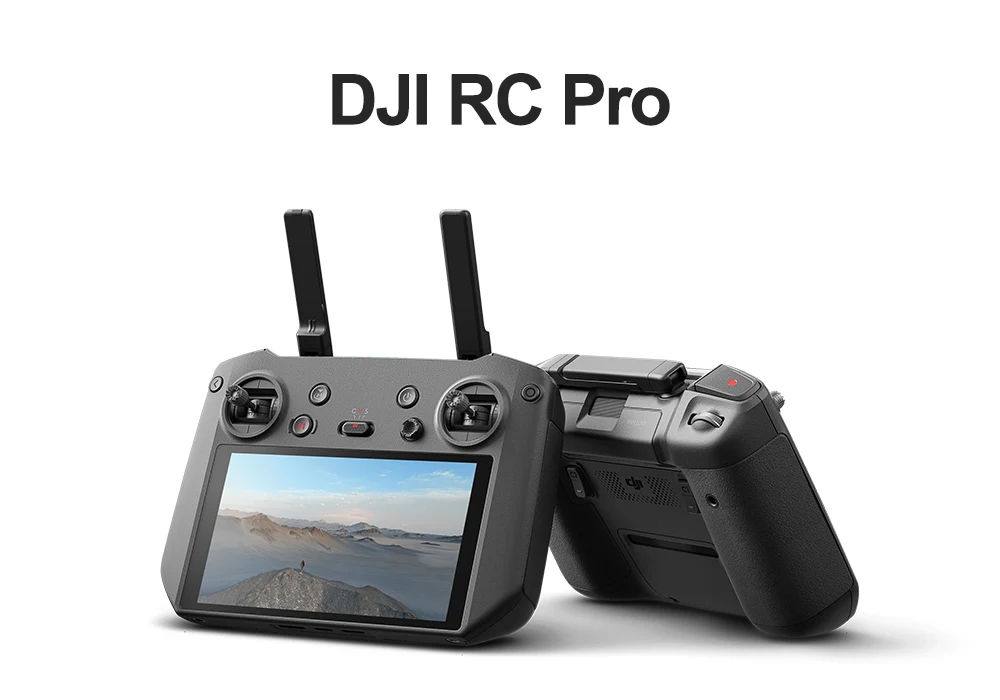

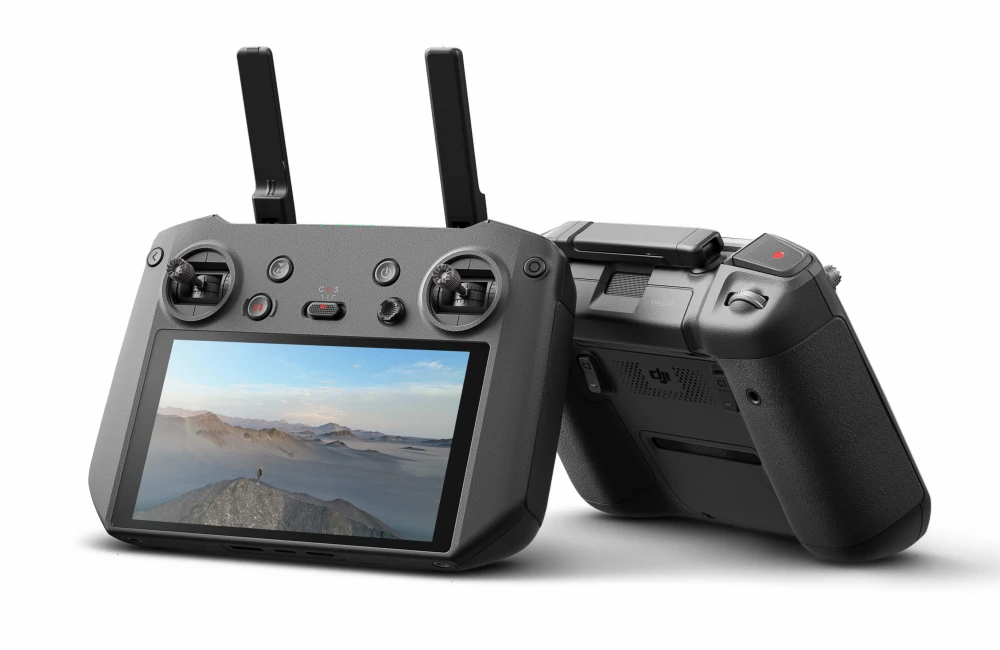

DJI RC Pro

Video Transmission

• Video Transmission System

• O3+

• Max Transmission Distance (unobstructed, free of interference)

• 15 km (FCC); 8 km (CE/SRRC/MIC)

• Operating Frequency [1]

• 2.400-2.4835 GHz
  5.725-5.850 GHz

• Antennas

• 4 Antennas, 2T4R

• Transmitter Power (EIRP)

• 2.4 GHz: ≤33 dBm (FCC); ≤20 dBm (CE/SRRC/MIC)

•

• 5.8 GHz: ≤33 dBm (FCC); ≤14 dBm (CE); ≤23 dBm (SRRC)

Wi-Fi

• Protocol

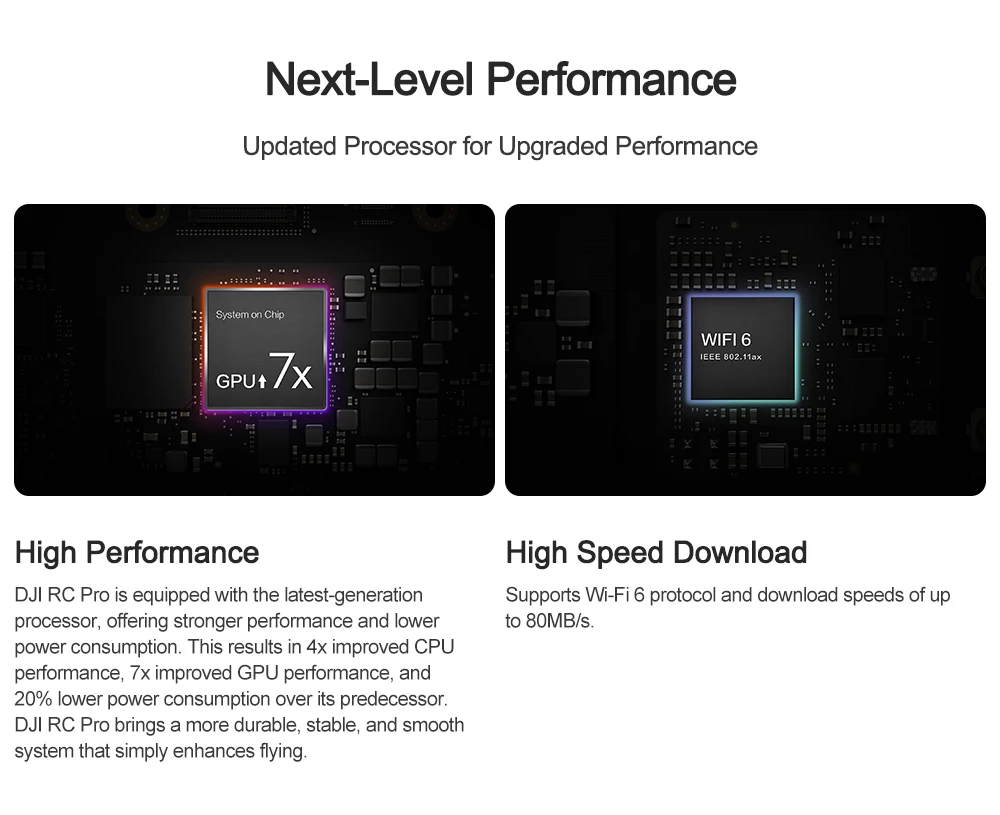

• 802.11a/b/g/n/ac/ax Support 2×2 MIMO Wi-Fi

• Operating Frequency [1]

• 2.400GHz-2.4835 GHz; 5.725-5.850 GHz

• Transmitter Power (EIRP)

• 2.4 GHz: ≤26 dBm (FCC); ≤20 dBm (CE/SRRC/MIC)5.8 GHz: ≤26 dBm (FCC/SRRC); ≤14 dBm (CE)

Bluetooth

• Protocol

• Bluetooth 5.1

• Operating Frequency

• 2.400-2.4835 GHz

• Transmitter Power (EIRP)

• ≤8 dbm

Screen

• Resolution

• 1920×1080

• Dimensions

• 5.5 inches

• Frame Rate

• 60 fps

• Brightness

• 1000 nits

• Touch Control

• 10-point multi-touch

General Specs

• Battery

• Li-ion (5000 mAh @ 7.2 V)

• Charging Type

• Recommended to be charged with USB charger at 12 V or 15 V

• Rated Power

• 12 W

• Storage Capacity

• 32GB internal + expandable storage via microSD card

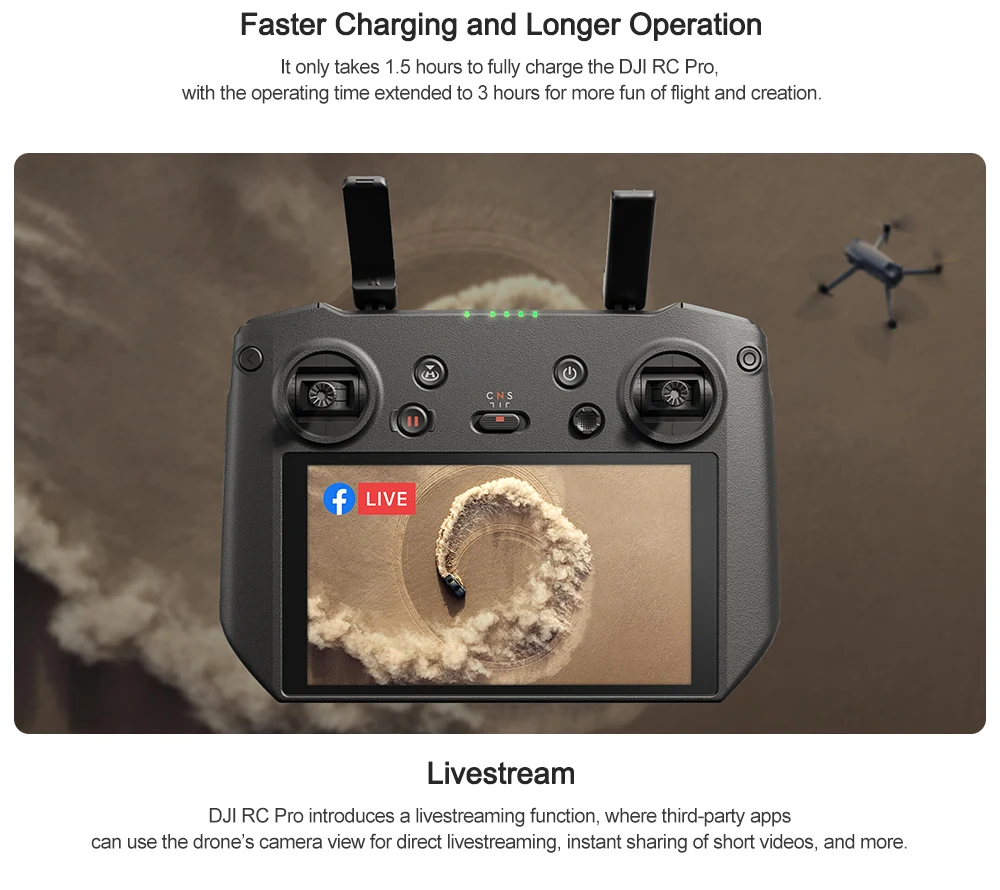

• Charging Time

• 2 hours (with USB charger at 12 V), 1.5 hours (with USB charger at 15 V)

• Operating Time

• 3 hours

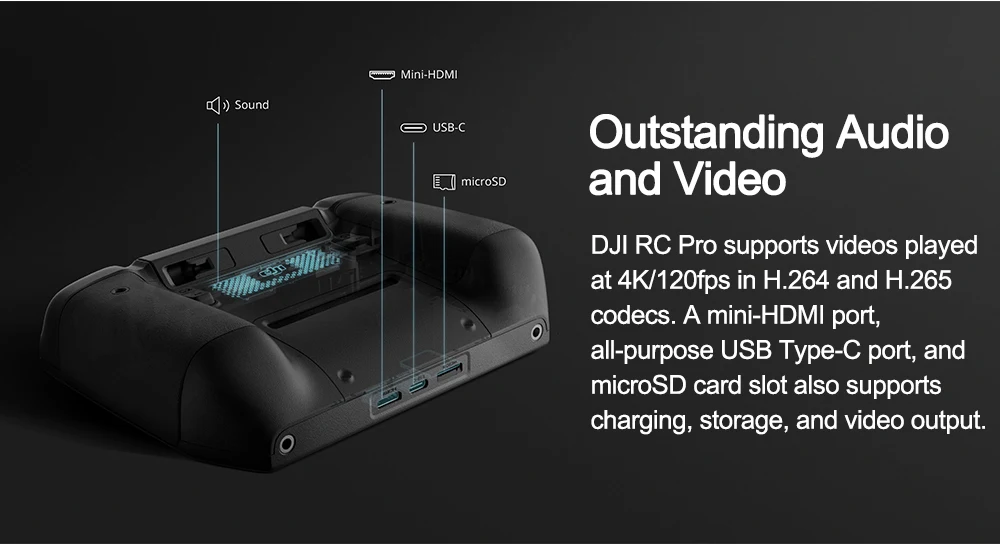

• Video Output Port

• Mini-HDMI port

• Operating Temperature

• -10° to 40°C (14° to 104° F)

• Storage Temperature Range

• Less than one month: -30° to 60° C (-22° to 140° F) One to three months: -30° to 45° C (-22° to 113° F) Three to six months: -30° to 35° C (-22° to 95° F) More than six months: -30° to 25° C (-22° to 77° F)

• Charging Temperature

• 5° to 40° C (41° to 104° F)

• Supported Aircraft Models [2]

• DJI Mavic 3, DJI Mavic 3 Cine, DJI Air 2S

• GNSS

• GPS + Galileo + GLONASS

• Dimensions

• 183.27×137.41×47.6 mm (antennas folded, controllers not mounted)183.27×203.35×59.84 mm (antennas unfolded, controllers mounted)

• Weight

• Approx. 680 g

• Model

• RM510

Storage

• Supported SD Cards

• SanDisk Extreme PRO 64GB V30 A2 microSDXCSanDisk High Endurance 64GB V30 microSDXCSanDisk Extreme 128GB V30 A2 microSDXCSanDisk Extreme 256GB V30 A2 microSDXCSanDisk Extreme 512GB V30 A2 microSDXCLexar 667x 64GB V30 A2 microSDXCLexar High-Endurance 64GB V30 microSDXCLexar High-Endurance 128GB V30 microSDXCLexar 667x 256GB V30 A2 microSDXCLexar 512GB V30 A2 microSDXCSamsung EVO 64GB V30 microSDXCSamsung EVO Plus 128GB V30 microSDXCSamsung EVO Plus 256GB V30 microSDXCSamsung EVO Plus 512GB V30 microSDXCKingston 128GB V30 microSDXC

Footnotes

• 1. 5.8 GHz is unavailable in some countries due to local regulations.
  2. DJI RC Pro will support more DJI aircraft in future. Visit the official website for the latest information.
