EDUP EP-3702 Portable Wifi Disk APP-WiFi Disk White
EDUP EP-3702 Portable Wifi Disk APP-WiFi Disk White
EDUP EP-3702 Portable Wifi Disk APP-WiFi Disk White

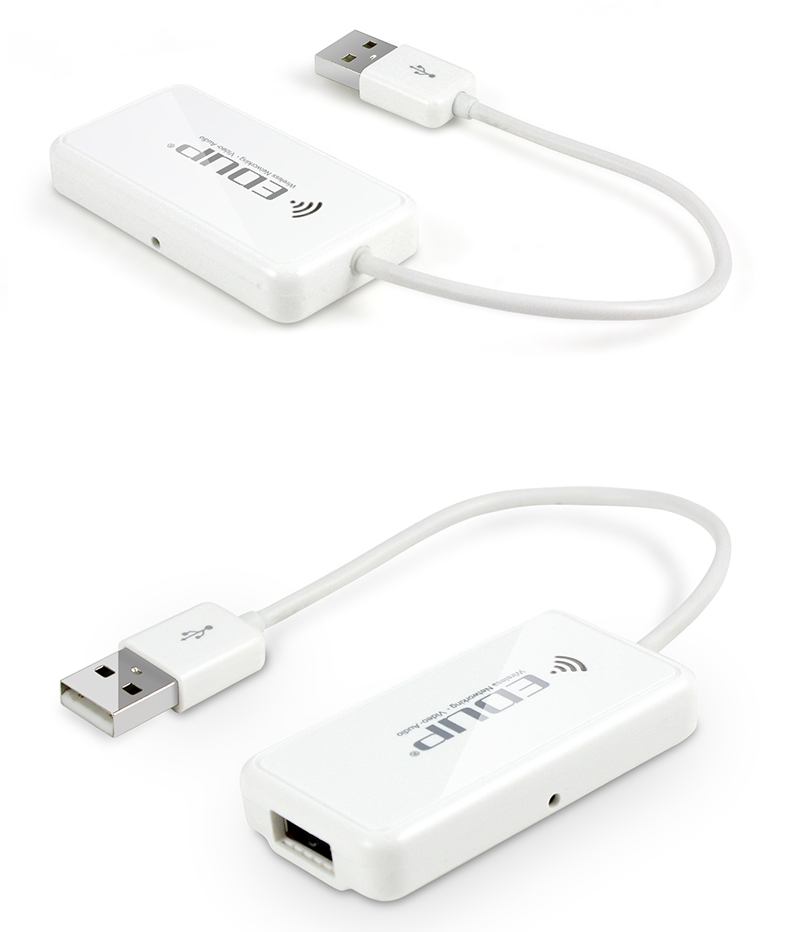

This device is a portable wireless storage device with one USB 2.0 host. It allows you to convert any USB external storage devices into a WiFi accessible media. Connect your USB external storage into the built-in USB port. Power the unit on and you can now wirelessly access your videos, music, photos, data and stream it to your iPad, iPhone, tablets, smartphones, and notebooks.
With the External USB connected, the portable WiFi USB can be accessed while the device is connected to computer or powerbank
the Wifi Disk can bridge the Internet connection to your existing wireless router, so you may access the data in the storage while surfing the Internet simultaneously
Allows 5 maximum concurrent connections for sharing video, audio, photo and data
Support PC client, provide iOS/Android client software
Mini size for easy carry, suitable for home, travel and business use
Powered by USB
|
CPU |
Model |
Ralink RT5350 |
|
Flash |
Model |
EN25Q64-104WIP |
|
Capacity |
8MByte SPI flash |
|
|
SDRAM |
Model |
M12L2561616A-6TG (SDRAM) |
|
WiFi |
Standard |
802.11 b/g/n |
|
Frequency |
2.4GHz |
|
|
Speed |
72Mbps for 20MHz 150Mbps for 40MHz |
|
|
Interface |
WiFi LED (Blue&Green) |
Blue flashing: the product is in booting Blue: the product is ready Green: Internet is ready |
|
Integrated USB 2.0 cable |
Power supply for device |
|
|
Reset button |
Factory default reset button |
|
|
Antenna |
Signal strength |
2dBi (WiFi component) 14dBm (Main chip) |
|
Environmental requirements |
Operating Temperature: 5°C to 40°C Non-Operating Temperature: 0°C to 60°C Operating Humidity: 5% to 90% (Non-condensing) Non-operating Humidity: 5% ~ 90 % (Non-condensing) |
|
|

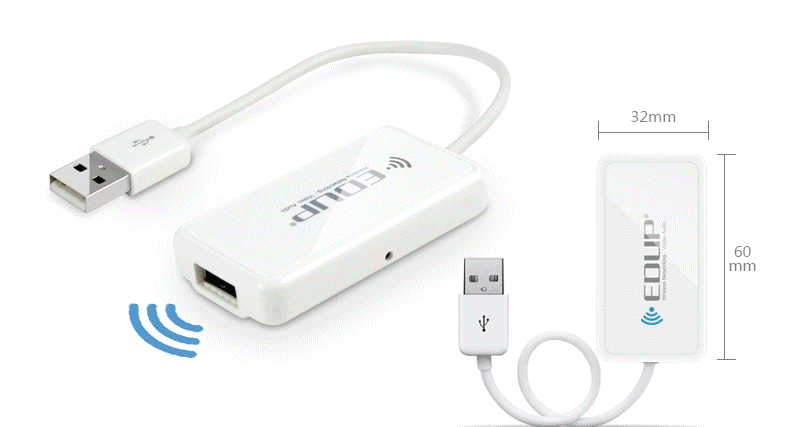

Size |
6 x 3.2 x 1.1cm/2.4 x 1.2 x 0.45in(L x W x T) |
|
|
Weight |
21g |
|
|
Color |
White |
|
|
Material |
Plastic |
|
|

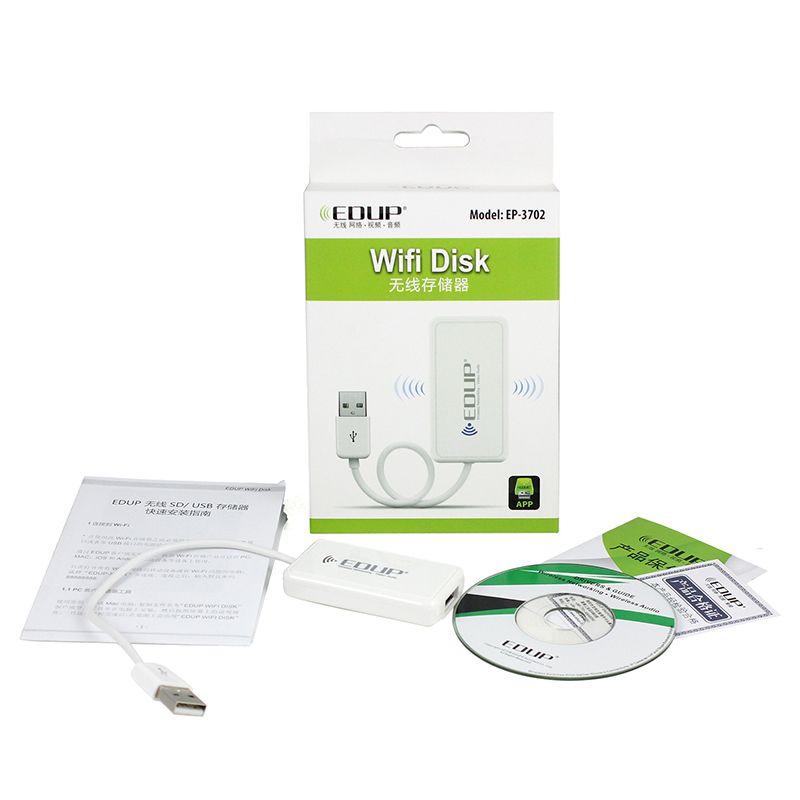

Package include |
1 x Wifi Disk 1 x User Manual 1 x CD Disk |
|
